transparant audio video speaker cable
Sperker cables are used in connecting for audio appliances, home appliances, small electric tolls and instruments. The conductor is stranded oxygen-free copper wire and the insulation is usually red/black PVC, transparent PVC is also common.
Speaker Cable
Application: used in connecting for audio appliances, home appliances, .small electric tolls and instruments.
Model: | Price: | ||
Minorder: | Supplyability: | ||
Payment: | Port: | ||
Certification: | Brand: | ||
Place: | Packaging: |
Specifications:

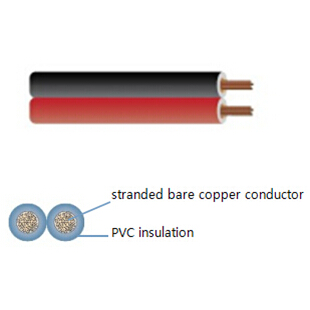

1. Conductor:stranded OFC bare copper
2. Jacket: PVC, twin parallel or twisted
3. Rated Voltage:75/150v
4. Color: Transparent, Clear, Red, Black, Yellow, Green, Brown and so on
Model( size) |
Specifications |
Outer Overall |
Jacket (MaterialColour) |
Diameter(mm) |
|||
0.35mm2 |
2CX20/0.15mm |
2.0X4.0 |
PVC/Transparent or any |
0.5mm2 |
2CX28/0.15mm |
2.2X4.4 |
PVC/Transparent or any |
0.75mm2 |
2CX42/0.15mm |
2.4X4.8 |
PVC/Transparent or any |
1.0mm2 |
2CX57/0.15mm |
3.0X6.0 |
PVC/Transparent or any |
1.5 mm2 |
2CX85/0.15mm |
3.6X7.2 |
PVC/Transparent or any |
2.5mm2 |
2CX7X20/0.15mm |
4.2X8.4 |
PVC/Transparent or any |
4.0 mm2 |
2CX7X32/0.15mm |
5.0X10.0 |
PVC/Transparent or any |
6.0mm2 |
2CX7X48/0.15mm |
5.5X11.0 |
PVC/Transparent or any |
|
|
|
|
AWG SIZE |
|||
model( size) |
Specification |
Insulation Out Dia. |
Jacket/sheath (MaterialColour) |
(mm) |
|||
24AWG |
2CX18/0.12mm |
1.8X3.6 |
PVC/Transparent or any |
22AWG |
2CX18/0.15mm |
2.0X4.0 |
PVC/Transparent or any |
20AWG |
2CX29/0.15mm |
2.2X4.4 |
PVC/Transparent or any |
18AWG |
2CX46/0.15mm |
2.5X5.0 |
PVC/Transparent or any |
16AWG |
2CX74/0.15mm |
3.0X6.0 |
PVC/Transparent or any |
14AWG |
2CX118/0.15mm |
3.5X7.0 |
PVC/Transparent or any |
12AWG |
2CX187/0.15mm |
4.5X9.0 |
PVC/Transparent or any |
10AWG |
2CX297/0.15mm |
5.5X11.0 |
PVC/Transparent or any |
With more than 20 years rapid development, the company become one of the industrial leaders, which covers an area of 50000 square meters, fixed assets of 70 million, annual production capacity of more than 500 million yuan.
The company has 180 outstanding employees, a complete set of advanced equipments in production and QC, first-class working environment, and efficient management system.
Lizhou get through CCC certification and ISO9001:2008 certification, really reaching multinational company’s management level. Lizhou Cable, with unique quality pursuit and dedication spirit, combined with advanced production technology, , has won high reputation in mainland China. Nowadays Lizhou Cable expand the sales in overseas market like Europe, the United States, Southeast Asia, Middle East,etc.
To meet the customers needs well and to lead the cable industry innovation trend will be Lizhou’s constant pursuits.
|
|
