single core flexible auto wire

auto wire, flexible cable, single core multi wire, H05V-K, H07V-K

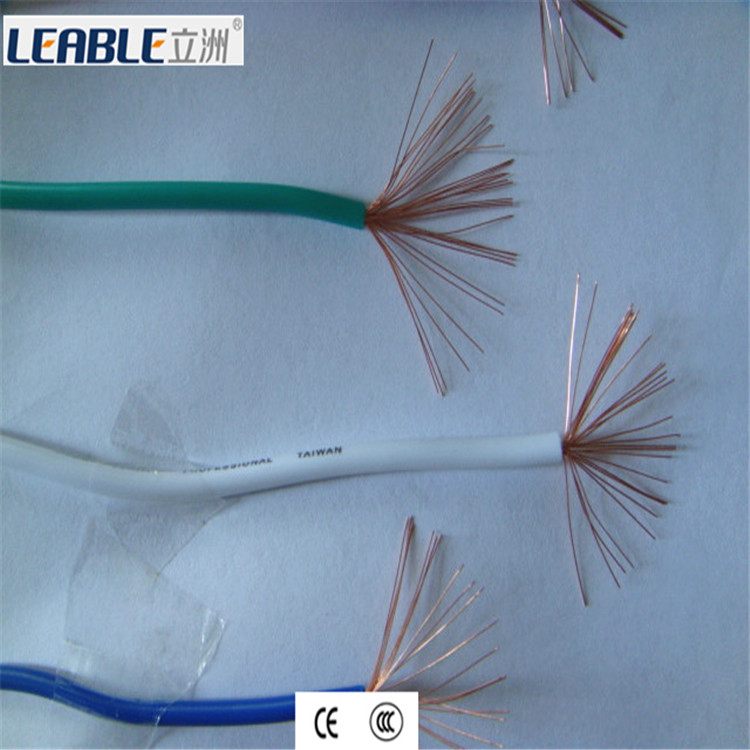

Product Description Construction: Flexible annealed copper wire as conductor (Class 5), PVC insulated single core wire. Code Name: H05V-K ( 0.5mm2 ~ 1.0mm2 );  H07V-K ( 1.5mm2 ~ 240mm2 ) Voltage: 300/500V for H05V-K;  450/750V for H07V-K. The non-sheathed single core flexible wire is used for wiring of switch control, relay and instrument panels of power switch-gear, and such purpose as internal connections in rectifier equipment and in motor starters and controllers.

Technology standards

1). Rated voltage U0/U: 300/500V and 450/750V.

2). The longtime permissible temperature of cable: below 70°C.

3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c.

4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.

 5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the external diameter of cable. And the other is above 6 times of the external diameter of cable.

 6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.

 7). Light weight, perfect bending properties, installed and maintained easily and conveniently.

 8). Insulation sheath material and color: PVC, PE, XLPE in red, black, blue, and any color as required.

 9). Manufacturer Standard: GB/T 5023-2008, BS 6004, IEC 60227.

Model: RV, H05V-K, H07V-K Price: $0.1-$10/meter
Minorder: 5000meters Supplyability: 1000kilometers/week
Payment: T/T, L/C Port: NINGBO, SHANGHAI
Certification: CCC, CE, ISO Brand: LIZHOU/according to customers' requirement
Place: zhejiang, china Packaging: LIZHOU/according to customers' requirement

Application

The non-sheathed single core flexible wire is used for wiring of switch control, relay and instrument panels of power switch-gear, and such purpose as internal connections in rectifier equipment and in motor starters and controllers.



Code Name

Nominal conductor area

Number of wires

Nominal diameter of wire

Nominal thickness of insulation

Approx.  Overall diameter

Max. Conductor DC resistance at 20oC

mm2

No.

mm

mm

mm

Ω/km

H05V-K

0.5

16

0.2

0.6

2.1

39

0.75

24

0.2

0.6

2.3

26

1

32

0.2

0.6

2.5

19.5

H07V-K

1.5

30

0.25

0.7

3

13.3

2.5

50

0.25

0.8

3.6

7.98

4

81

0.25

0.8

4.2

4.95

6

121

0.25

0.8

4.8

3.3

10

77

0.4

1

6.5

1.91

16

126

0.4

1

7.8

1.21

25

196

0.4

1.2

9.7

0.78

35

280

0.4

1.2

11.5

0.554

50

380

0.4

1.4

13.1

0.386

70

350

0.5

1.4

15.5

0.272

95

475

0.5

1.6

17.6

0.206

120

600

0.5

1.6

19.7

0.161

150

750

0.5

1.8

22

0.129

185

925

0.5

2

24.1

0.106

Zhejiang Lizhou Wire And Cable Co., Ltd., founded in 1991, is a modern high-tech enterprise, integrating R&D, production and sales as one, specializing in wire & cable and related products,which include electrical wire, power cable, control cable, silicone wire, power plug, wire harness, LED connecting wire, and other series varieties.

With more than 20 years rapid development, the company become one of the industrial leaders, which covers an area of 50000 square meters, fixed assets of 70 million, annual production capacity of more than 500 million yuan.

The company has 180 outstanding employees, a complete set of advanced equipments in production and QC, first-class working environment, and efficient management system.

Lizhou get through CCC certification and ISO9001:2008 certification, really reaching multinational company’s management level. Lizhou Cable, with unique quality pursuit and dedication spirit, combined with advanced production technology, , has won high reputation in mainland China. Nowadays Lizhou Cable expand the sales in overseas market like Europe, the United States, Southeast Asia, Middle East,etc.

To meet the customers needs well and to lead the cable industry innovation trend will be Lizhou’s constant pursuits.
