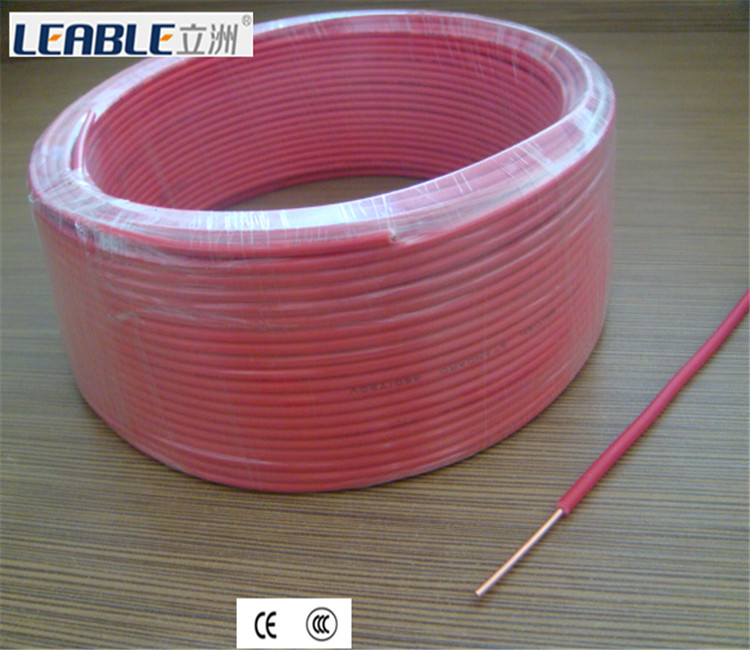

pink single core solid cable
Application: For general purpose, suitable to be used in wiring of home appliances, electric equipments and devices,etc. Standard: GB 5023.1, IEC 60227/228, VDE, BS 6004, equivalent to H07V-U, H07V-R and H07V-K
Our company is a professional manufacturer of 0.5-16mm pvc copper wire ,We have the best R&D, production, sales and service team and modern enterprise management organization.
About the products:
Color:red, black, yellow, blue, green all ok, and we can produce according to your samples.
Package:common package, paper reel, plastic reel, wooden drum, or according to your requirements.
Welcome to visit our company and send us sample.
Model: | BV | Price: | $0.1-$10/meter |
Minorder: | 1000meters | Supplyability: | 1000kilometers/week |
Payment: | T/T, L/C | Port: | NINGBO, SHANGHAI |
Certification: | CCC, CE, ISO | Brand: | LIZHOU/according to customers' requirement |
Place: | zhejiang, china | Packaging: | common package, plastic reel, wooden drum etc. |
Characteristics:
1).Rated voltage 300/500V and 450/750V.
2).The long-time permissible temperature of cable: BV-105 below 105°C,and the other below 70°C.
3).Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c.
4).The bend radius: 4 times if the external diameter of cable <25mm and at least 6 times if over 25mm
5).Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.
6).Light weight, perfect bending properties, installed and maintained easily and conveniently.
7).Insulation or sheath color: PVC in red, black, blue or any color as required.
Structure and product lists for electrical wire BV series
Nominal | Conductor | Nominal | Max overall | Approx |
Sectional Area(mm²) | No/Dia.(mm) | Insulation Thickness(mm) | Dia.(mm) | Weight(mm) |
1.5 | 1/1.38 | 0.7 | 3.3 | 19.2 |
1.5 | 7/0.52 | 0.7 | 3.5 | 20.6 |
2.5 | 1/1.78 | 0.8 | 3.9 | 30.8 |
4 | 1/2.25 | 0.8 | 4.4 | 45.5 |
6 | 1/2.76 | 0.8 | 4.9 | 65 |
10 | 7/1.35 | 1 | 7 | 110 |
16 | 7/1.70 | 1 | 8 | 170 |
25 | 7/2.14 | 1.2 | 10 | 270 |
35 | 7/2.52 | 1.2 | 11.5 | 364 |
50 | 19/1.78 | 1.4 | 13 | 500 |
70 | 19/2.14 | 1.4 | 15 | 688 |
95 | 19/2.52 | 1.6 | 17.5 | 953 |
120 | 37/2.03 | 1.6 | 19 | 1168 |
150 | 37/2.25 | 1.8 | 21 | 1466 |
185 | 37/2.52 | 2 | 32.5 |
1808 |
With more than 20 years rapid development, the company become one of the industrial leaders, which covers an area of 50000 square meters, fixed assets of 70 million, annual production capacity of more than 500 million yuan.
The company has 180 outstanding employees, a complete set of advanced equipments in production and QC, first-class working environment, and efficient management system.
Lizhou get through CCC certification and ISO9001:2008 certification, really reaching multinational company’s management level. Lizhou Cable, with unique quality pursuit and dedication spirit, combined with advanced production technology, , has won high reputation in mainland China. Nowadays Lizhou Cable expand the sales in overseas market like Europe, the United States, Southeast Asia, Middle East,etc.
To meet the customers needs well and to lead the cable industry innovation trend will be Lizhou’s constant pursuits.
|
|
